The Best USB-C Tester in 2026: Why You Shouldn't Buy One
A USB-C power meter measures the wire. Your computer measures the negotiation. For most questions the answer is already on your screen - and here's the short list of cases where a meter still earns its money.
You are almost certainly here because of one of three questions:
- Why is this drive transferring at a fraction of its rated speed?
- Why is my laptop charging slowly, or not at all?
- Is this cable actually as fast as the box said?

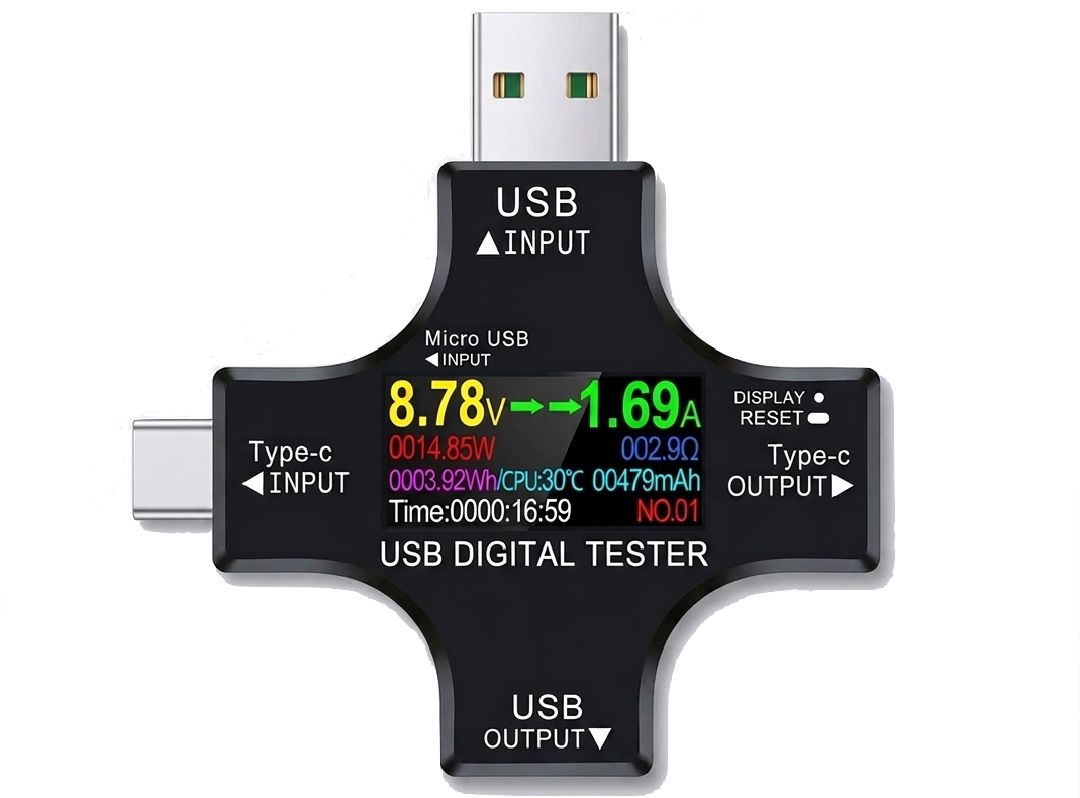

Amazon’s answer is a $15-20 inline USB-C meter: a passthrough dongle with a small screen showing volts, amps and watts. For those three questions specifically, it is the wrong instrument - not because it is cheap, but because it measures the wrong layer.
Two layers, two instruments
Every USB-C connection has an electrical layer and a negotiation layer.
The electrical layer is volts and amps on VBUS - what is actually flowing right now. An inline meter reads this, and reads it accurately. That is a real measurement and there is nothing wrong with it.
The negotiation layer is the conversation that produced those numbers: which power profiles the charger advertised, which one the host requested, what link speed the two ends settled on, whether the cable’s e-marker declared 3 A or 5 A, and which side gave up something.
A meter sees the outcome. It cannot see the decision. All three questions above are questions about the decision.
Take the slow drive. The meter shows a steady 5 V and a sensible current draw. Nothing on its screen looks wrong, because electrically nothing is wrong - USB 2.0 at 480 Mbps is a perfectly healthy connection. What the meter cannot tell you is that both ends are capable of 10 Gbps and settled for 480 Mbps because of the cable in between. That fact only exists in the negotiation record, and your operating system is already holding it.
Your computer is already a tester
Every mainstream OS exposes the negotiation layer, and has for years:

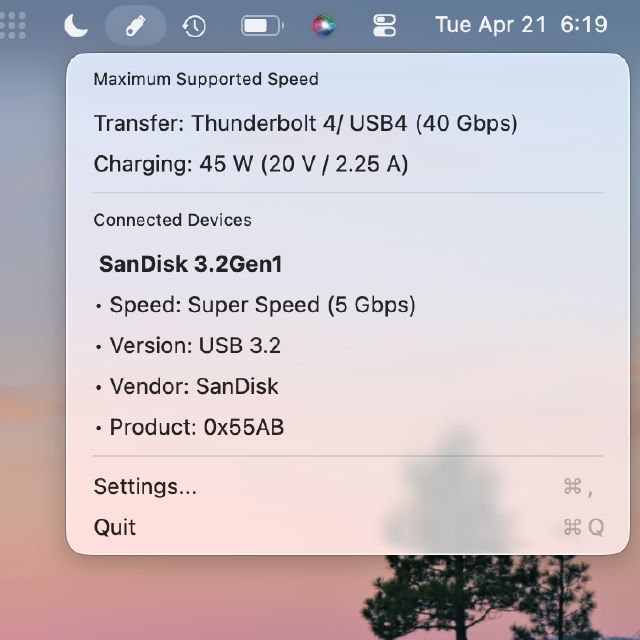

- macOS reports it through IOKit: adapter identity, rated wattage, the full advertised Power Delivery profile menu, and live voltage, current and power at the port.
- Windows reports the active PD contract through UCSI on modern chipsets, plus the full device tree with negotiated link speeds.

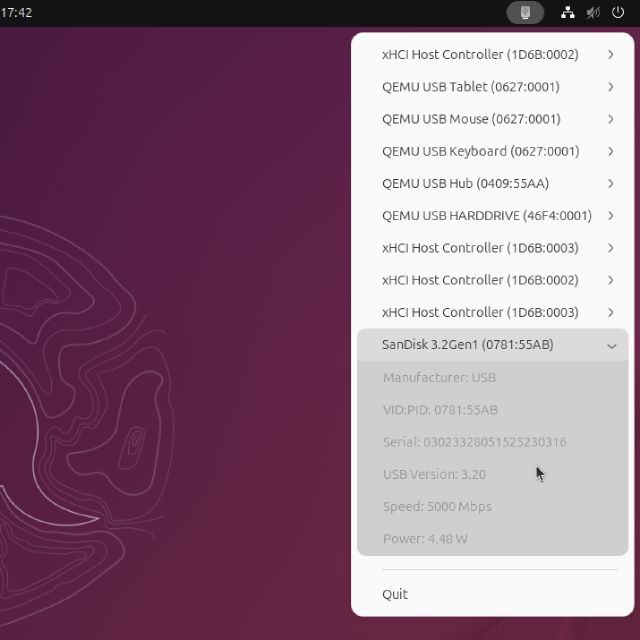

- Linux puts the USB-C partner and its PD capabilities in
/sys/class/typec/, and charging voltage and current in/sys/class/power_supply/.
None of that requires hardware, because the port controller already did the measuring. If you want the raw route, we wrote up where each OS keeps this data. If you would rather it just be on screen, that is what USB Connection Information is: $9.99, one time, on the platform you already own.
When a meter is genuinely the right buy
There are four cases where the dongle is the better tool, and it is worth being straight about them.
1. There is no computer in the loop. Testing a wall charger against a phone, a battery bank against a tablet, a car adapter against anything. An inline meter works between any two devices. Software needs a host that is willing to tell you what it knows.
2. You are chasing voltage drop. The OS reports what the port controller measures at its end of the cable. A meter sits at the far end and shows what actually survived the trip. On a long or thin cable that difference is the entire question, and the meter is the only one of the two measuring at the point you care about.
3. You need to force a profile the host will not request. A PD trigger will demand 9 V or 20 V from a charger on command, which lets you confirm a rail exists and holds under load instead of waiting for some device to happen to ask for it.
4. You are on a desktop. Power telemetry on macOS comes from the battery controller. A Mac mini, Mac Studio, Mac Pro or iMac has no battery, so it has no telemetry - the device and speed data is all still there, but live wattage is not.
If your work is bench-testing chargers and cables as objects, away from a machine, buy the meter. That is a real tool for a real job, and $17 is a fair price for it.
The verdict
Buy a USB-C tester if you are testing hardware in isolation, measuring loss at the far end of a cable, or forcing profiles by hand.
Skip it if what you actually want to know is why your machine is behaving the way it is. That answer was never on the wire. It is in the negotiation, it happened the instant you plugged the thing in, and your computer already wrote it down.
